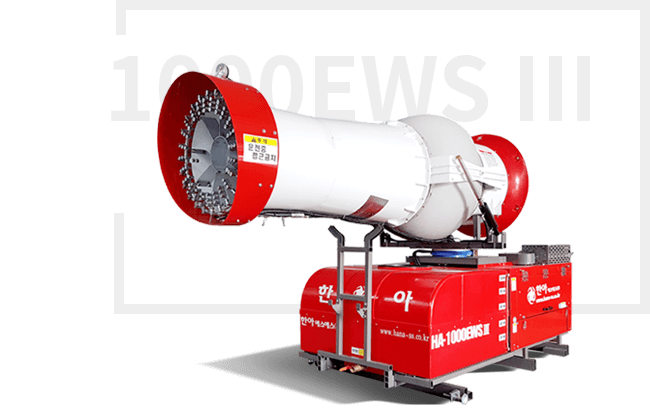

HA-1000EWS III

Multipurpose long-distance sprinkler
Loaded-in-vehicle type (1000L)

  • The first compact design in Korea (equipped with 4-wheel type of 1-ton)
  • Equipped with powerful ventilation engine and high-capacity pump, allowing for a maximum spraying distance of 70 M
  • Loaded on vehicle to ensure the accessibility, allowing diverse pest control functions
  • Maximized control capability by producing particulates with special ceramic nozzle
  • Reduction of manpower as a one-person operation and swift fumigation work
  • Maximized convenience by self-propelled lift for getting on and off
Main system

Equipped with powerful ventilation engine and large capacity pump

Large axial pan and Hyundai diesel turbo engine of 60 horsepower

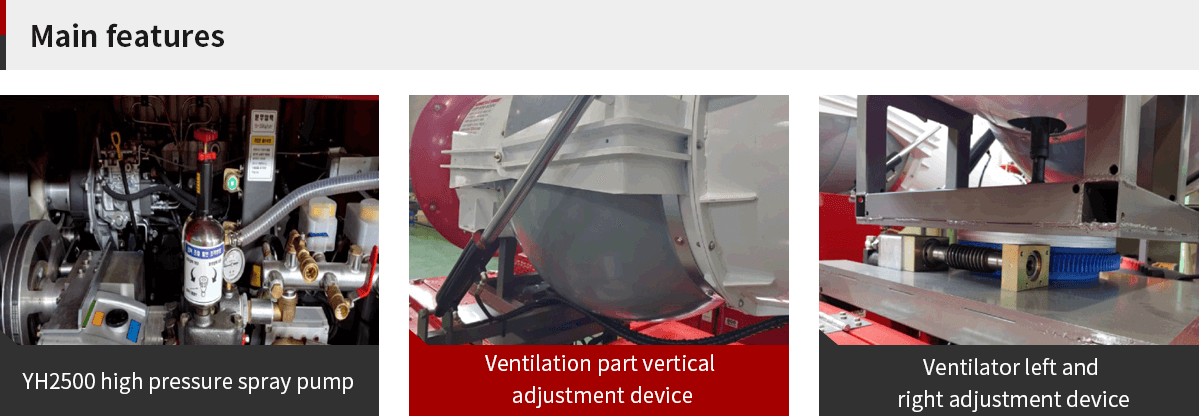

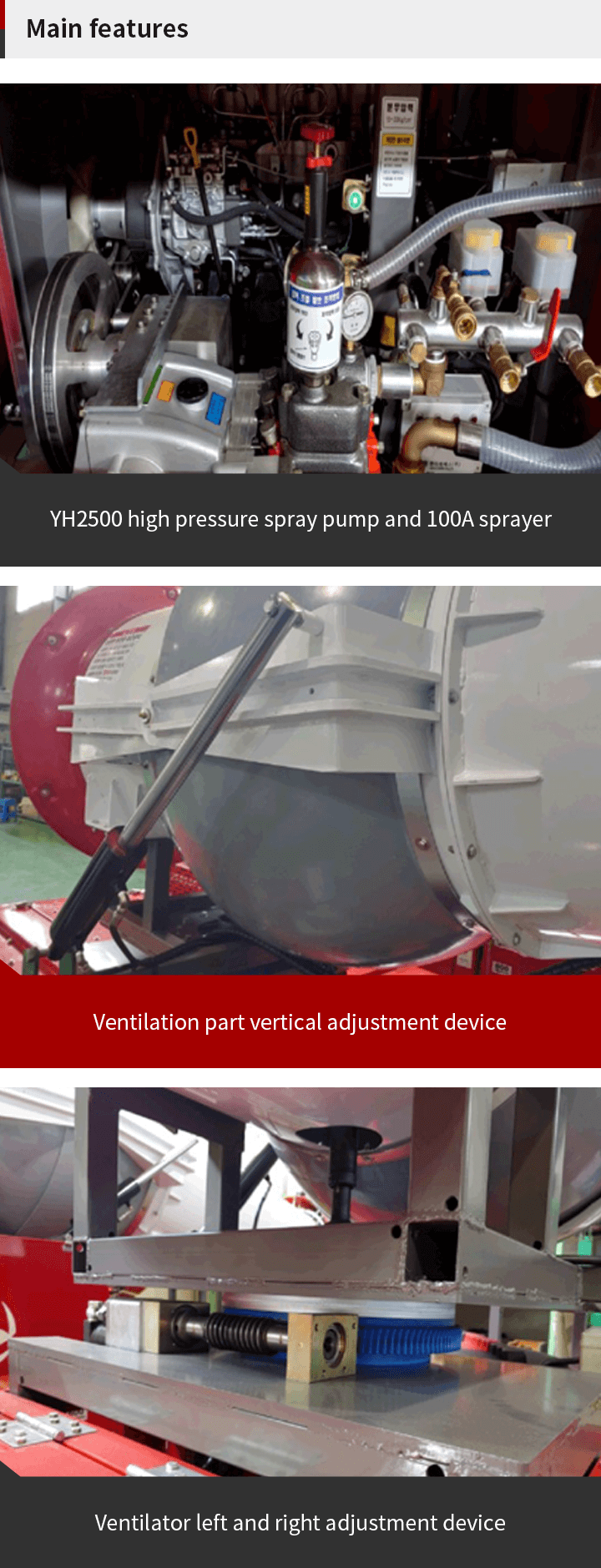

  1. Equipped with powerful ventilation engine and high-capacity spraying pump (YH-2500), allowing for a maximum spraying distance of 70 M
  2. 770mm aluminum fan with high-tension



The first compact design in Korea

Equipped with 1-ton 4-wheel of Kia Motors



Ecowide

Echowide Sprayer, an environmentally friendly particlulate wide-area exterminator, is a product developed by HAN'A SS CO., LTD. by directly assembling it with localization experience of imported machinery and by intergrating the know-how for delivery and A/S.

Hyundai 60 horsepower diesel turbo engine
Performance

Special ceramic nozzle

Excellent accessibility

Loaded on vehicle to ensure the accessibility,
allowing diverse pest control functions



Nozzle blockage phenomenon
prevention and water
discharge system

Maximized control capability by producing
particulates with special ceramic nozzle



Reduction of manpower as a one-person operation and swift fumigation work

Special Ceramic Nozzle
Convenience

Maximized convenience by self-propelled lift for getting on and off (optional)



Wireless remote control equipment (optional)



Top-to-bottom and side-to-side ventilation system

Wireless control box and remote control
SPECIFICATION

MODEL : HA-1000EWS III

Length*Width*Height

3925*1490*2195

Weight

kg

1406



Blower Engine

Designation

HA-1000EWS2

Type name

D4BB TC

Type

Water-cooled 4-cylinder turbo diesel

Maximum Torque

kg-m

20

Maximum Output

ps/rpm

65/2500

Fuel tank

L

40

Chemical liquid tank capacity

L

1000

Water supply

system

Jet pump type

Water supply

L/min

100

Stirring device

Classification type (jet pump)



Blower fan

Form

Axial flow

Number of rotations used

rpm

2400

Maximum Air volume

m3/min

1,650

Fan diameter

mm

750

Air inflow guide pipe

mm

1072

Spray distance (effective/maximum)

m

50/70

Number of wings

Fixed fan

12

Rotating fan

11

Turning angle

Up and down

Degree

40

Right and left

Degree

330

Spray pump

Form

3 Double reciprocating piston pump

Spray volume

2500A

L/min

250

2500A

PS

7

2500A

rpm

550

Spray nozzle

Nozzle type

Ceramic disc nozzle

Nozzle Lance

Two-segment nozzle lance

Nozzle quantity

circle

ea

48

lower

ea

5



Driving method

Wireless control operation

Basic installation

Wired adjustment operation

Vehicle driver seat adjustment-wired/wireless conversion
